TeacherGaming Desk

The TeacherGaming Desk is a classroom toolbox designed to make game-based learning accessible to everyone. It combinines a portfolio of games with pedagogical support and real-time analytics.

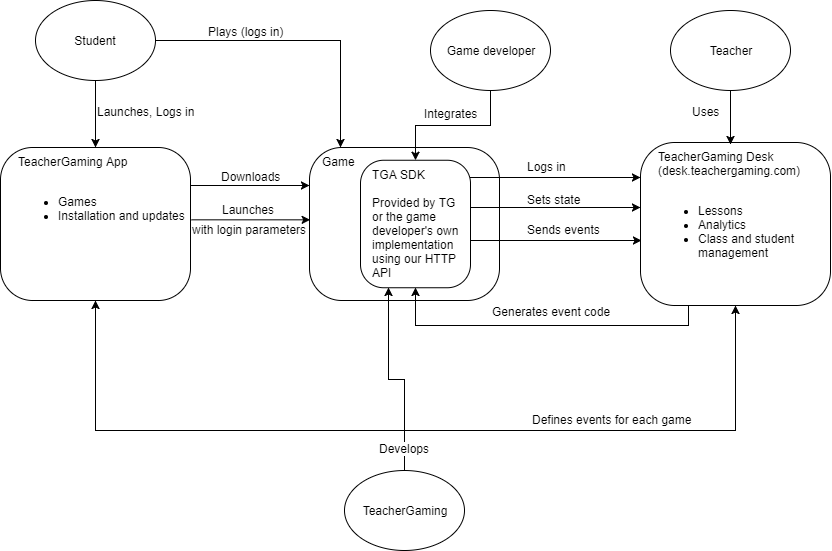

From a technical point of view TeacherGaming Desk is made of three things.

1. TeacherGaming App (https://app.teachergaming.com/) that is installed on student devices. TeacherGaming App is used to
   • Download games
   • Launch games
     • with automatic TeacherGaming Desk student login
       • User logs into TeacherGaming App. Login is passed on to the game when lauched.
   • Notify students when the Teacher starts a lesson
2. Games with TeacherGaming Desk integration (TGA SDK)
   • Log in using TeacherGaming Desk student id and class id
     • Can be used for license check (DRM)
   • Send analytics to TeacherGaming Desk
   • Send screenshots and other creations to Creatubbles
3. A web based platform (called TeacherGaming Desk) ( https://desk.teachergaming.com ) for teachers, administrators, game developers and TeacherGaming that implements the following functionalities for its users.
   • Teachers
     • Lesson plans for using games in education
     • Analytics information about student skill progress and real-time information about what students are doing in a game
     • Viewing screenshots and other creations students send to Creatubbles
     • Managing students and classes
   • Administrators
     • Manage subscriptions
     • Manage teachers
   • Game developers
     • Provide oAuth single sign on support for using the TeacherGaming Desk login in other web based applications
     • HTTP API for sending analytics and otherwise integrating to TeacherGaming desk (when not using a ready-made SDK)
   • TeacherGaming
     • Manage games and their information
     • Define the analytics for a game by managing skills, events and activities
     • Generate SDKs for games
     • Create lessons for gamesä

General SDK Information

What is TGA SDK

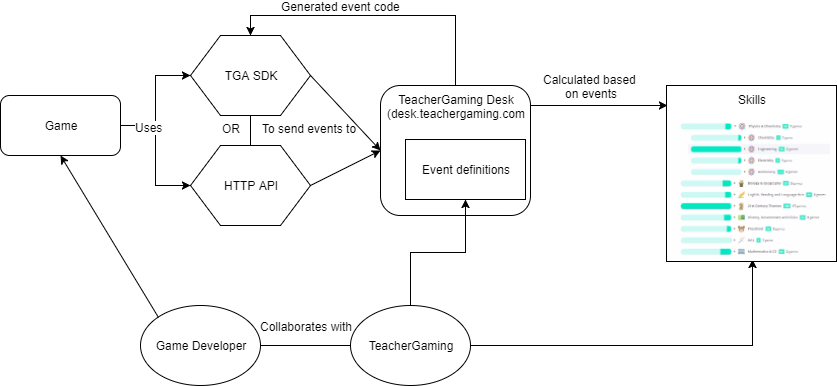

The analytics part of TeacherGaming Desk can be described as a web-based platform that collects analytics information (events and state) sent by games and processes it to reveal what the students (users, players) have learned while playing the game. The SDK for integrating the analytics is called TeacherGaming Desk Analytics SDK, or TGA SDK for short.

This part of the document is written for all game developers that are going to integrate TeacherGaming Desk analytics into their games. It describes how to do the integration on a general level. Integration can be done either by using a ready-made SDK for your platform, or by manually using the HTTP API. More detailed information is available in the specific parts for each SDK, easily accessed from the table of contents on the left.

Integration flow

Integrating TeacherGaming Desk analytics to a game is done in collaboration with TeacherGaming and the game developer (you). The flow is as follows.

1. We send your way a suggestion of what the skills and the game events linked to those skills could be - this will be the basis for the analytics framework and something we can finalise together with you.
2. Once the framework is ready, we generate the game specific SDK code and send that over so you can add it to the game.
3. You send us a test build and fix possible bugs (we do our best to assist but hope you’re taking charge of this)
4. You send us the final build and we get it into our system and in the hands of the users in the subscription service.

Student id and Class id

Students are identified in TeacherGaming Desk by their class and student ids. These are used instead of real names or similar in order to prevent outsiders (anyone except their teachers or parents etc.) from identifying individual students in the system. The class id is a system-wide unique generated alphanumeric identifier that identifies a group of students (usually a class). The student id is an alphanumeric identifier that is unique within a class, and is manually set either by a teacher in the web interface or by the student on first login if automatic generation of students has been allowed for that class.

TeacherGaming Desk requires the game to send a class id and a student id for each student playing the game to assign data to the right student. This means that students need to login before data can be sent.

Logging in can be done through the TeacherGaming app or in the game UI. Logging in through the app is the primary method and implementing the automatic login through TeacherGaming app is mandatory since that is required for it to work. Implementing an in-game login UI is optional but recommended. Our Unity C# SDK has a ready-made UI you can use if you are developing on Unity.

You should not save the class and student ids in your game. The student should need to login separately every time the app is started either through the TeacherGaming app or in the in-game UI.

Automatically logging in from TeacherGaming app

When the user has logged in to TeacherGaming app and launches your game the TeacherGaming app passes the login information to your game when it is lauched (or brought back to foreground).

On iOS this is done using an URI scheme.

On Android this is done by using Launch Intent (when app is not already running) and Broadcast Intent (when app is running) parameters. We are planning to change Android to also use the URI scheme in the future, so all new integrations on Android should support that. Support for Intent & Broadcast is also still needed since the TeacherGaming app still currently uses those. The ready-made SDKs currently support both Intent and URI scheme logins on Android.

On desktop platforms we pass the login information to the game as a command line parameter. The parameter is formed as URI parameters in the same way as when using the URI scheme on mobile platforms.

The SDKs do the handling of these parameters automatically. When using an SDK all you need to do is listen to a callback (see the platform specific SDK documentation for how to do this) and react appropriately. If you are using the HTTP API you need to do the parameter handling yourself (see 7.2.3. AUTHENTICATION / LOGIN THROUGH TeacherGaming app ).

When the student has logged in via TeacherGaming app you should not give the user the option to logout or to login as different student inside the game. Changing the student should only be done via the TeacherGaming app in this case. It is good if you still have the UI to show the class and student ids but you can leave it out if you wish. This can be the same UI you use to login inside the game just having the input fields and buttons in a disabled state disabled for example.

Testing automatic login through TeacherGaming app

1. Get TeacherGaming app from https://app.teachergaming.com/. Install the app and launch it.
2. Press “LOGIN TO ANALYTICS” button at the top of the screen
3. Tap 10 times TG logo at the top of the screen and a new menu will appear
4. In the new menu input your game’s package name (on mobile platforms) and class id and student id
5. Press “Launch” Your game should now run and a popup should inform you about the login result.

Testing automatic login on mobile without TeacherGaming app

URI:
<your bundle identifier>://?classid=<class id>&studentid=<student id>&command=<login/logout>

Example (in html file):

<a href = "com.fivemoreminutes.testgame://?classid=h1xme&studentid=student1&command=login"> Login h1xme/student1 </a>

Create a html file with links according to the URI scheme or input the URI in the device browser address bar.

Replace <your bundle identifier> with your bundle identifier (f.e. com.teachergaming.testgame) <class id> with a class id and <student id> with a student id and choose login or logout as the command. You can leave the classid=<class id>&studentid=<student id>& part out if you have logout as the command. Note that you should never leave out the ? character.

Testing automatic login on desktop without TeacherGaming app

Desktop command line examples:

“Switch & Glitch.exe” “com.fivemoreminutes.testgame://?classid=h1xme&studentid=student1&command=login”

“Switch & Glitch.exe” “?classid=h1xme&studentid=student1&command=login”

On desktop platforms you can test the automatic login by giving the URI as a command line parameter when starting your game.

Note that on desktop you can leave the <your bundle identifier>:// part out. Note that the parameter contains special characters, so remember to put it in “”.

Creating your own UI for in-game login

For logging in to TeacherGaming Desk in-game the student needs to be able to input a class id and a student id. A good place for this UI is for example in a settings menu, or somewhere in the main menu. Usually two input fields with OK and Cancel options are enough. You can also have a Logout button to log out of TGA. Both the class id and student id fields should be either lowercase or uppercase only, not mixed case. In the system the class id and student id are not case sensitive. Uppercase only can be used to make it easier for young children to type the ids.

Login UI examples

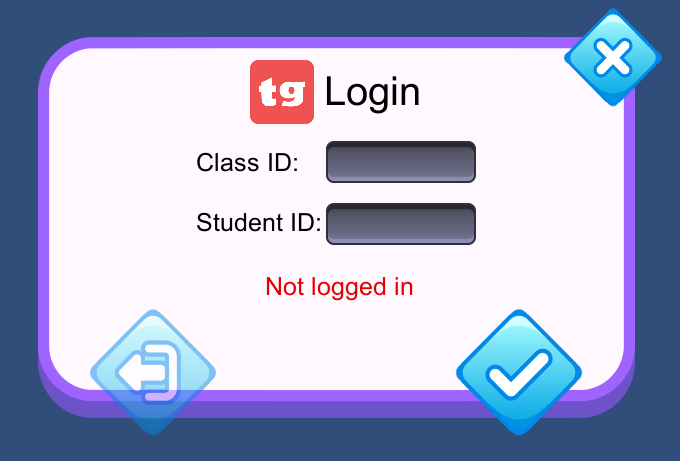

Unity C# SDK built-in login UI. Lower left button is logout, lower right login, and the X (close) is cancel.z

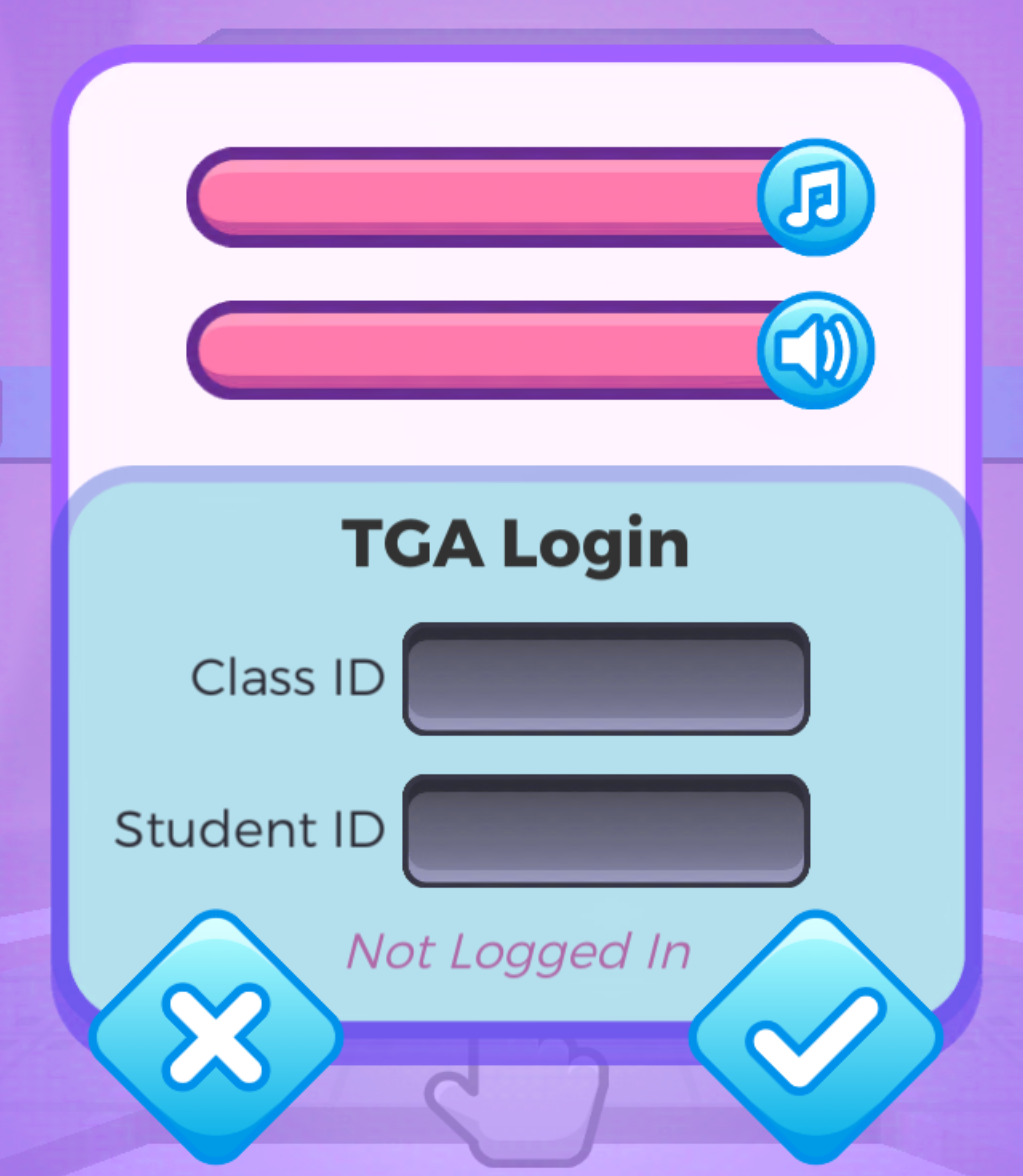

Switch & Glitch manual login

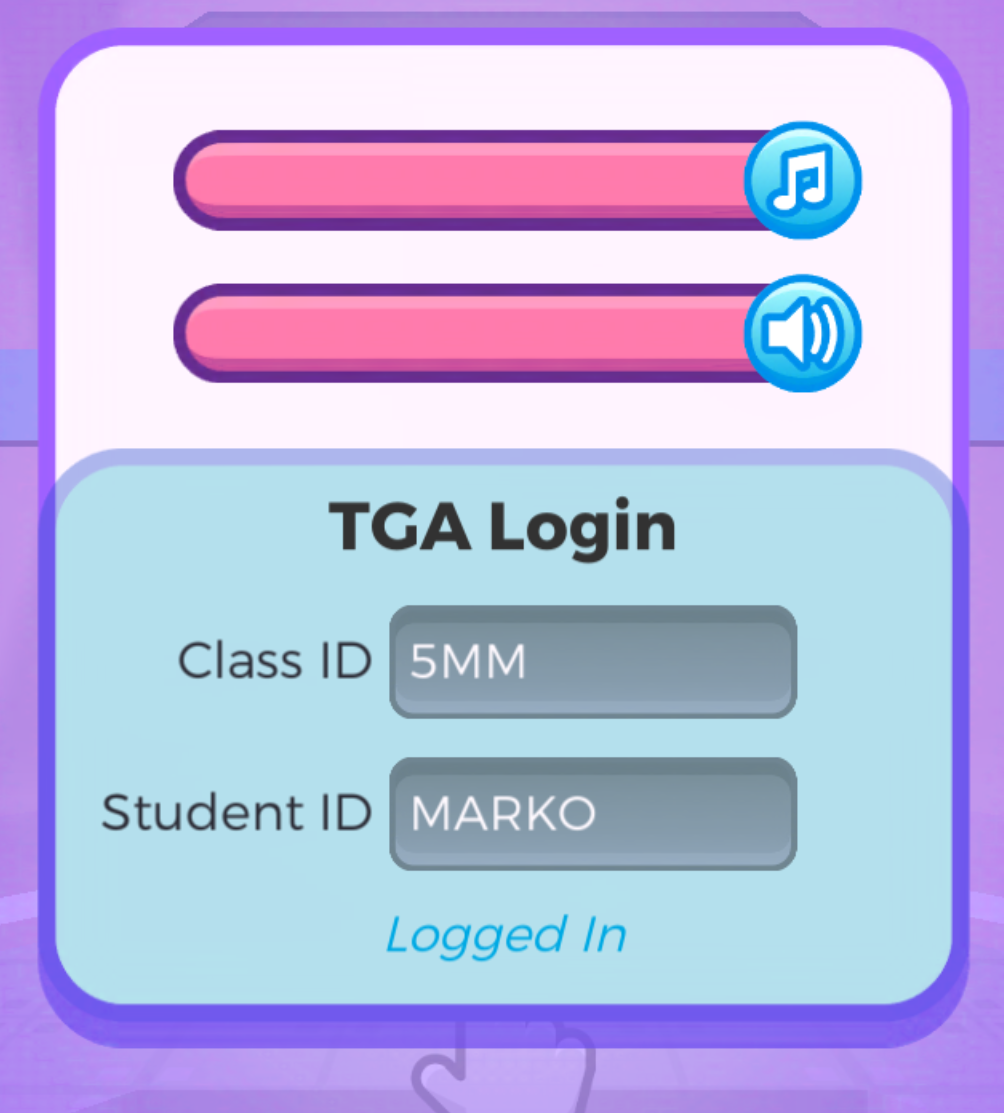

Switch & Glitch logged in via TeacherGaming app

Save games, user profiles and TeacherGaming student login

Player progress should be tied to TeacherGaming login (class id & student id combination), so that different users see different savegames. If your game has different user profiles for different players, this is especially important. If you need an exception to this rule or would like to have help in implementing it please contact TeacherGaming.

Note that the user can put your game in the background, go back to TeacherGaming app, and log out and/or log in with different student & class ids. For desktop games this is not a problem since launching the game again from TeacherGaming app after that launches a new instance of it, but for mobile games you should check if the login has changed when your game comes back to foreground and handle it (f.e. change profile, go back to main menu) in the way best suited for your game.

Cloud saves

You can save arbitrary binary information from your game to TeacherGaming Desk on a per student basis. This is intended for use in implementing a cloud save functionality so that game progress would be the same for each TeacherGaming Desk student login regardless of which device they login on. See Unity C# SDK/Cloud saves and Manual Integration And HTTP API/Cloud Save Upload for more information.

Sending events

Events

Events are the primary vehicle for sending analytics information from the game to TeacherGaming Desk. They are used to collect the relevant information about the students actions in the game so that TeacherGaming Desk can calculate how playing the game advances the students real-world skills in the relevant topics and so that the students progress within a given lesson can be properly shown.

The events are designed by TeacherGaming in collaboration with the game developer. After design is complete the event definitions are input in the TeacherGaming Desk system by TeacherGaming staff. This defines what kind of events are accepted when the game sends them using the HTTP API. When using a ready-made SDK the game specific event code is generated before the SDK is sent to the developer. The SDK also uses the HTTP API for sending the events.

Events can have three types of parameters: strings, integers or booleans. In the generated SDK event sending code each event defined in TeacherGaming Desk will have its own class under TGASDK<GameName>.Event the functions of which you can use to send the event. In this section a general overview with pseudocode is given. See the platform specific SDK documentation for more detailed information on how to send the events.

You don’t need to check if the student is logged in to TeacherGaming before sending events. The SDK will automatically check inside the function calls for this.

Sending events with duration

// Tracking an event with duration
// Level Start
TGASDKSomeGame.Event.LevelCompleted.Start();

// Within level, when player gets score
TGASDK.SomeGame.Event.LevelCompleted.Score += 1

// At the end of the level
TGASDKSomeGame.Event.LevelCompleted.Send();

Our SDK can automatically count time for an event and append duration to sent data. You can modify any additional data inside the event before you send it. To start the event, call TGASDK.Event.<EventName>.Start(). You can gather all the needed data for the event before you send it using TGASDK.Event.<EventName>.Current.<DataParameter> To send the event, call TGASDK.Event.<EventName>.Send()

Sending events without duration

// Sending an event without tracking for duration
TGASDKSomeGame.Event.ItemCrafted.Send("item1");

If the event is something for which it does not make sense to track a duration you can call TGASDK.Event.<EventName>.Send(...) with event data as parameters to send the event directly.

Updating state

By default when user logs in, teacher will see in their dashboard state “Playing game” for that student. It is possible to update the state and detailed state for student for what they are currently doing in the game, like In main menu, Playing level 1, Playing Multiplayer, In Settings Menu. This allows teacher to see by glance in teacher dashboard what student is currently doing.

What states are displayed for a given game is designed by TeacherGaming in collaboration with the game developer.

Updating state can be done using one of three function calls

• TGASDK.TGA.UpdateUserState(string state)
  • This sets the state showing below student name in teacher dashboard. It also resets detailed state showing below this state, if there was any.
• TGASDK.TGA.UpdateUserState(string state, string detailedState)
  • This sets the state showing below student name in teacher dashboard and detailed state below it.
• TGASDK.TGA.UpdateUserStateDetailedOnly(string stateDetailed)
  • This sets the detailed state below main state and does not reset the main state. You can use this to for example update round numbers or other live data happening in current state of your game.

You can keep the state update calls in your game and don’t need to check if user is logged in to TGA, we will automatically check inside the function calls if player is currently logged in to TGA and send the state update only if so.

State examples

TGASDK.TGA.UpdateUserState("In Main Menu");

TGASDK.TGA.UpdateUserState("In Settings Menu");

TGASDK.TGA.UpdateUserState("Playing Singleplayer Game", "Tutorial Level 4");

// When game begun
TGASDK.TGA.UpdateUserState("Playing Multiplayer Game");
// When round changed
TGASDK.TGA.UpdateUserStateDetailedOnly("Round 2");

Default state for logged-in student	Student is in main menu	Student is in settings menu	Student is playing singleplayer game, Tutorial Level 4 has been passed for detailed state	Student is playing multiplayer game, Round number is being passed to detailed state when round changes

Unity C# SDK

General

This document describes the specifics of integrating TGA to your game using the TGA Unity C# SDK. For general integration information and links to other SDK documents see the general SDK instructions.

Requirements

Our current SDK requires Unity 4.0.0f7 or later. If you need an SDK for an earlier version of Unity please contact us.

First steps

• TeacherGaming will send you a .unitypackage with the latest SDK and assets.
• Import the package by selecting “Assets -> Import package -> Custom package” in Unity.
• Attach the SDK script to a GameObject that is not deleted during the game. The script is located in “TGAGameSpecific/” folder and is named TGASDK<yourgamenamehere>.cs
• Updating the SDK and assets can usually be done by simply importing new package and updated files will automatically be detected.
  • If you are having problems and would like to try a complete reimport of the SDK, you can delete the following directories & files before importing the package
    • TGA
    • TGAGameSpecific
    • StreamingAssets/TGA
    • Plugins/Android/AndroidManifest.xml
  • In older versions of the SDK you needed to manually attach the CreatubblesManager script to a GameObject. You no longer need to do this and should remove it if you have attached it previously.

Notes

Your game specific SDK file is called TGASDK<yourgamenamehere>.cs. Class inside that file is called TGASDK<yourgamenamehere>. To improve readability, we have not added <yourgamenamehere> for each method call in this document, we are mentioning TGASDK and you should add your game name after each TGASDK call to make it correct.

Student login

Logging in can be done through the TeacherGaming app or in game. If users authenticate in game you will need to add a menu where user can type in a classid and a studentid. Authentication must be done before data can be sent.

Automatically logging in with TeacherGaming App

// Automatically logging in with TeacherGaming App
// Login status delegate & event (in TGASDK.TGA)
public delegate void LoginStatusListener(bool isLoggedIn);
public static event LoginStatusListener OnLoginStatusChanged;

<!-- Assets/Plugins/Android/AndroidManifest.xml -->
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.unity3d.player">
  <application android:icon="@drawable/app_icon" android:label="@string/app_name">

    <activity android:name="com.unity3d.player.UnityPlayerActivity"
              android:label="@string/app_name"
              android:configChanges="fontScale|keyboard|keyboardHidden|locale|mnc|mcc|navigation|orientation|screenLayout|screenSize|smallestScreenSize|uiMode|touchscreen">
        <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
        </intent-filter>
    </activity>

    <activity android:name="com.teachergaming.tga.TGAAndroidUriSchemeActivity"
            android:label="@string/app_name"
            android:launchMode="singleTop">
        <intent-filter>
            <action android:name="android.intent.action.VIEW" />
            <category android:name="android.intent.category.DEFAULT" />
            <category android:name="android.intent.category.BROWSABLE" />
            <data android:scheme="YOUR.BUNDLEIDENTIFIER.HERE" /> <!-- REPLACE WITH YOUR GAME'S ANDROID APP BUNDLE IDENTIFIER -->
        </intent-filter>
    </activity>

    <receiver
        android:name="com.teachergaming.tgareceiver.TGABroadcastReceiver"
        android:enabled="true"
        android:exported="true" >
        <intent-filter>
            <action android:name="com.teachergaming.com.TGAbroadcast" />
        </intent-filter>
    </receiver>

  </application>
</manifest>

You can test automatic login using the following URI format
<your bundle identifier>://?classid=<class id>&studentid=<student id>&command=<login/logout>

Logging in via TeacherGaming App is automatically handled by the SDK. You can listen to the TGASDK.TGA.OnLoginStatusChanged C# event to get notified when the login status changes. The event gives you one boolean parameter that is true if a student logged in and false if the current student logged out. The event is implemented using the C# delegate & event system.

You can use the TGASDK.TGA.LoggedInExternally() to check if the user logged in using the TeacherGaming App.

Note for Android! In future versions of TeacherGaming App we are moving to use URI schemes to forward the login parameters to games on Android, like we already do on iOS. For this to work you need to specify your app’s bundle id for the com.teachergaming.tga.TGAAndroidUriSchemeActivity activity in the AndroidManifest.xml file in Assets/Plugins/Android.

On Android and iOS you can test the uri scheme login by creating a .html file with links according to the URI scheme and opening it in your device browser and clicking on the links.

On desktop platforms you should test the automatic login by giving the uri as a command line parameter when starting your game. See 2.3.1. AUTOMATICALLY LOGGING IN FROM TEACHERGAMING APP for details.

Built-in login menu

// Built-in login menu
// Using the built-in login menu

// First check that not already logged in externally
if (!TGASDK.TGA.LoggedInExternally())
{
    // Then show the login UI
    TGASDK.TGA.CreateLoginPanel();
}

The TGA Unity C# SDK can create a ready made UI that has all the authentication functionality built in. See the code example on the right on how to use it. A login dialog will be created that looks like this (without the blue background)

This dialog will inform user if the login failed or succeeded. As with login via TeacherGaming App you can listen to the TGASDK.TGA.OnLoginStatusChanged event to get notified when the login status changes.

Handling subscription required

You can define the compile time symbol TGA_SUBSCRIPTION_REQUIRED to make the login menu require a subscription. If the symbol is defined you cannot login if you don’t have an active subscription and you cannot close the login menu without logging in. Pressing X in the top-right corner will quit the application by calling Application.Quit(). You can also supply your own function for quitting as a parameter for TGASDK.TGA.CreateLoginPanel() for example if you need to bypass your Monobehaviour.OnApplicationQuit handler that calls Application.CancelQuit.

When TGA_SUBSCRIPTION_REQUIRED is defined you should show the login window when the game app is started (main menu or equivalent).

Custom login menu

// Custom login menu
// Logging in from code

TGASDK.TGA.Login(classId, studentId);

Note: If a student has logged in externally (using TeacherGaming App) your custom login menu should not allow changing the login nor logging out. You can check if the user has logged in externally using TGASDK.TGA.LoggedInExternally(). It is recommended you still have the UI to show the class and student ids. This can be the same UI you use to login inside the game just having the input fields and buttons in a disabled state disabled for example.

If you choose to create your own login menu you need to pass the class id and student id to the auth process. You can start the login process by simply calling the TGASDK.TGA.Login function as shown on the right.

You can listen to the TGASDK.TGA.OnLoginStatusChanged event to get notified when the login status changes.

Sending events

The events that have been defined in TeacherGaming Desk website are generated to the SDK and can be used to send data from the game to Desk. All the events have their own inner class inside TGA<yourgamename>.Event with a property for each event parameter and functions to start and send the event.

Sending events with duration

// This is an example with our game Switch N’ Glitch.

/// When the player enters a singleplayer level, in our StartGame() function
TGASDKSwitchGlitch.Event.SPLevelComplete.Start();

// And when the player has completed the level:
TGASDKSwitchGlitch.Event.SPLevelComplete.Current.LevelId = Client.UIActiveClient.LocalGame.GameBoard.PrefabPath;
TGASDKSwitchGlitch.Event.SPLevelComplete.Current.FailedCommandCount = player.failedTileCount;
TGASDKSwitchGlitch.Event.SPLevelComplete.Current.CommitCount = player.totalCommitCount;
TGASDKSwitchGlitch.Event.SPLevelComplete.Current.OptimalCommitsForLevel = Client.UIActiveClient.LocalGame.GameBoard.programExecutionsGoal;
TGASDKSwitchGlitch.Event.SPLevelComplete.Current.MetagelCollected = player.playerScore;
TGASDKSwitchGlitch.Event.SPLevelComplete.Send();

This is useful for events that have a clear start and end times and as such a duration. Our SDK can automatically count time from beginning to end and append duration to sent data. You can also modify any additional data inside the event before you send it. To start an event, call TGASDK.Event.<EventName>.Start() You can change additional data inside the event before you send it. All data for the started event can be changed using TGASDK.Event.<EventName>.Current.<ParameterName> To send the event, call TGASDK.Event.<EventName>.Send() without parameters.

Sending events without duration

// Sending an event without duration

// This example is from KerbalEdu
TGASDKKerbalEdu.Event.SituationChange.Send(FlightGlobals.ActiveVessel.mainBody.bodyName, FlightGlobals.ActiveVessel.situation.ToString(), (int)FlightGlobals.ActiveVessel.totalMass);

You can call TGASDK.Event.<EventName>.Send(…) with event data as parameters to send an event immediately, without tracking for duration.

Updating state

See 2.4. UPDATING STATE.

Updating state can be done using one of three function calls

• TGASDK.TGA.UpdateUserState(string state)
  • This sets the state showing below student name in teacher dashboard. It also resets detailed state showing below this state, if there was any.
• TGASDK.TGA.UpdateUserState(string state, string detailedState)
  • This sets the state showing below student name in teacher dashboard and detailed state below it.
• TGASDK.TGA.UpdateUserStateDetailedOnly(string stateDetailed)
  • This sets the detailed state below main state and does not reset the main state. You can use this to for ex. Update round numbers or other live data happening in current state of your game.

You can keep the state update calls in your game and don’t need to check if user is logged in to TGA, we will automatically check inside the function calls if player is currently authenticated to TGA and send the state update only if so.

State examples

TGASDK.TGA.UpdateUserState("In Main Menu");

TGASDK.TGA.UpdateUserState("In Settings Menu");

TGASDK.TGA.UpdateUserState("Playing Singleplayer Game", "Tutorial Level 4");

// When game begun
TGASDK.TGA.UpdateUserState("Playing Multiplayer Game");
// When round changed
TGASDK.TGA.UpdateUserStateDetailedOnly("Round 2");

Default state for logged-in student	Student is in main menu	Student is in settings menu	Student is playing singleplayer game, Tutorial Level 4 has been passed for detailed state	Student is playing multiplayer game, Round number is being passed to detailed state when round changes

Cloud saves

You can save arbitrary binary information from your game to TeacherGaming Desk on a per student basis. This is intended for use in implementing a cloud save functionality so that game progress would be the same for each TeacherGaming Desk student login regardless of which device they login on.

Uploading data

byte[] saveData = Game.GetSaveData();
string format = Game.GetSaveDataFormat();

TGASDK.TGA.UploadCloudSave(format, saveData,
    (failed) =>
    {
        if (!failed)
        {
            Debug.Log("Save uploaded to TG Desk successfully.");
        }
        else
        {
            Debug.Log("Save upload to TG Desk failed!");
        }
    }
);

public static void TGASDK.TGA.UploadCloudSave(string format, byte[] data, Action<bool> afterUpload = null) is used for uploading the data. Works only when logged in. Starts upload of data for the currently logged in user. A good place for uploading the data is each time the game progress is saved. Note however that you should not upload the data too frequently. A minimum of 3 minutes between uploads is recommended.

Parameters:

string format Freeform format string. Should not be empty. Can be used for example when game save format changes between versions of the game.

byte[] data Game save data serialized to a byte array.

Action<bool> afterUpload = null Optional callback function. Called when the upload has completed. Callback parameter is false on successful upload, true otherwise.

Getting data

void Awake()
{
    TGASDK.TGA.OnLoginStatusChanged += OnLoginStatusChanged;
}

void OnLoginStatusChanged(bool loggedIn)
{
    if (loggedIn == true)
    {
        Game.UpdateGameStateFromSaveData(TGASDK.TGA.GetCloudSaveFormat(), TGASDK.TGA.GetCloudSave());
    }
    else
    {
        Game.LoadLocalGameState();
    }
}

void OnDestroy()
{
    TGASDK.TGA.OnLoginStatusChanged -= OnLoginStatusChanged;
}

Data is downloaded on login and updated on each call to UploadCloudSave. You can use public static byte[] TGASDK.TGA.GetCloudSave() to get the data and public static string TGASDK.TGA.GetCloudSaveFormat() to get the format. Both of these functions should only be called when logged in. A good place to get the data and update game state accordingly is in a TGASDK.TGA.OnLoginStatusChanged event handler.

Creatubbles

Creatubbles integration can be used to take a screenshot of the game and send it to TGA and Creatubbles web page. To use this feature the user needs to be logged in to TGA and the CreatubblesManager script needs to be attached to a gameobject as explained in the FIRST STEPS section.

Usage

/// Creatubbles
TGASDK.TGA.ScreenShotToCreatubbles();

To send a screenshot to TGA you can simply call TGASDK.TGA.ScreenShotToCreatubbles(). This will take a screenshot and open a UI that shows you the image that would be sent and where you can enter a description for the screenshot.

For example you can create a simple button to send the screenshot and show it in your in-game UI. There is a camera texture in the “TGA/Resources/Graphics/” folder that you can use with the button if you wish.

Getting information

General information

// General information

// Call example: TGASDK.TGA.IsUserLoggedIn()

// Login information

// Returns true if logged into TGA, otherwise false.
bool IsUserLoggedIn()

// Returns true if logged into TGA via broadcast (TGA App), otherwise false.
bool LoggedInExternally()

// Returns the student ID used for login.
string GetStudentId()

// Returns the class ID used for login.
string GetClassId()

Here (on the right) are some functions you can use to get status information about TGA. All of these are static functions of TGASDK.TGA.

Subscription information

// Subscription information

// Returns true if game subscription has expired, otherwise false.
bool SubscriptionExpired()

// Returns the message that should be shown to user if the subscription has expired
string SubscriptionExpiredMessage()

These functions can be used to query if there is a valid subscription for the game. For testing the subscription, there are these two classes: Class h1xme never has subscription expired. Class h1xjr always has subscription expired. Both of these classes have student self-signup enabled so user can login with any studentid for testing.

C++ SDK

General

This document describes the specifics of integrating Teachergaming Desk to your game using the TGA C++ SDK. For general integration information and links to other SDK documents see the general SDK information.

Requirements

Our current SDK requires a C++ compiler with C++ 11 support. It has been tested with Microsoft Visual (Studio) C++ 2015.

Optional: The SDK has builtin support for using libcurl (https://curl.haxx.se/libcurl/) or Unreal Engine’s HTTP functionality for implementing the needed HTTP requests. There is also an interface you can override to provide your own implementation if you can’t use either of those.

First Steps

// TGA SDK initialization examples

// Unreal Engine ------------
#include "TGAHTTPUnreal.hpp"
//...
    std::vector<std::string> parameters;
    // Get command line parameters
    std::string cmdLine(TCHAR_TO_UTF8(*FCommandLine::Get()));
    std::istringstream iss(cmdLine);
    std::copy(std::istream_iterator<std::string>(iss),
    std::istream_iterator<std::string>(),
    std::back_inserter(parameters));

    // Initialize TGA SDK
    TGASDKMyGame::Init(new TGAHTTPUnreal(), parameters);
// --------------------------

// Using libcurl ------------
#include "TGAHTTPlibcurl.hpp"
//...
    std::vector<std::string> parameters;
    // Get parameters
    if (argc > 1)
        for (int i = 1; i < argc; ++i)
            parameters.push_back(string(argv[i]));

    // Initialize TGA SDK
    TGASDKMyGame::Init(new TGAHTTPlibcurl(), parameters);
// --------------------------

// Using your own TGAHTTPImplementation implementation
#include "TGAHTTPForMyEngine.hpp"
//...
    std::vector<std::string> parameters;
    // Get parameters ...

    // Initialize TGA SDK
    TGASDKMyGame::Init(new TGAHTTPForMyEngine(), parameters);
// --------------------------

1. TeacherGaming will send you a .zip package with the latest SDK and assets.
2. Unzip to your location of choice (inside your project is ok).
3. Inside the package you will find the tgasdk directory that contains the SDK header files (.hpp). Add it to your project’s include directories.
   • TGA SDK is a header only library, so there are no source code files that need to be compiled nor library files that need to be linked. All code is in the header files.
4. Prepare for making HTTP requests, choose one
   • If using Unreal Engine, enable exceptions for your project (add bEnableExceptions = true; to your ProjectName.Build.cs)
   • Install libcurl (https://curl.haxx.se/libcurl/) and add it to your project
   • Implement TGAHTTPImplementation yourself
5. Add a call to TGASDK<yourgamenamehere>::Init(...) to your game’s initialization code.
   • As the first parameter, use one of these. Ownership is transferred to TGASDK.
     • new TGAHTTPUnreal() if using Unreal Engine
       • need to #include "tgasdk/TGAHTTPUnreal.hpp" first
     • new TGAHTTPlibcurl()
       • need to #include "tgasdk/TGAHTTPlibcurl.hpp" first
     • an instance your own implementation of TGAHTTPImplementation
       • #include your own implementation’s header
   • As the second parameter give a list of the command line parameters your application was started with.
6. Add a call to TGASDK<yourgamenamehere>::Cleanup() to your game’s cleanup code.

Notes

Your SDK file is called TGASDK<yourgamenamehere>.hpp. Class inside that file is called TGASDK<yourgamenamehere>. To improve readability, we have not added <yourgamenamehere> for each method call in this document, we are mentioning TGASDK and you should add your game name after each TGASDK call to make it correct.

Student Login

Logging in can be done through the TeacherGaming app or in game. If users authenticate in game you will need to add a menu where user can type in a classid and a studentid. Authentication must be done before data can be sent.

Automatically Logging in with TeacherGaming app

// You need to supply command line parameters to the initializer for automatic login to work
std::vector<std::string> parameters;
// Get command line parameters and insert them to the vector
TGASDKMyGame::Init(new TGAHTTPlibcurl(), parameters); <- supply the parameters as parameter

// You can listen to login/logout events by implementing the TGASDK::TGA::LoginStatusChangeListener interface
class MyClassThatListensToLoginStatusChanges : public TGASDK::TGA::LoginStatusChangeListener
{
public:
    /// Override to listen for login status changes
    virtual void OnLoginStatusChanged(bool loggedIn)
    {
        // If loggedIn is true, the student has just logged in, if false, logged out.
        // NOTE! Calls to this function may (and usually do) happen in another thread.
    };

    void Initialize()
    {
        TGASDKMyGame::TGA::AddLoginStatusChangeListener(this);
    };

    void Destruct()
    {
        TGASDKMyGame::TGA::RemoveLoginStatusChangeListener(this);
    };
};

For the automatic login system to work in the C++ SDK you need to supply the command line parameters when calling TGASDK<yourgamenamehere>::Init(...).

Logging in via TeacerhGaming App is automatically handled by the SDK. You can use TGASDK::TGA::AddLoginStatusChangeListener to add listeners (that implement TGASDK::LoginStatusChangeListener inteface) to get notified when the login status changes. The callback gives you one boolean parameter that is true if a student logged in and false if the current student logged out. Remember to call TGASDK::TGA::RemoveLoginStatusChangeListener before your listener is deleted. Note that the listener can be (and usually is) called in another thread.

You can use the TGASDK::TGA::LoggedInExternally() function to check if the user logged in using the TeacherGaming App.

You can test the automatic login by giving your game a command line parameter of the following format.

<your bundle identifier>://?classid=<class id>&studentid=<student id>&command=<login/logout>

Custom Login Menu

When the student has logged in via TG App, you should not give the user the option to logout or to login as a different student inside the game. Changing the student should only be done via the TG App in this case. It is good if you still have the UI to show the class and student ids. This can be the same UI you use to login inside the game just having the input fields and buttons in a disabled state disabled for example.

Here is an example of a TGA login UI (the built-in UI in the Unity SDK).

class LoginUI : public TGASDK::TGA::LoginStatusChangeListener
{
    void LoginButtonPressed(const string& classId, const string& studentId)
    {
        TGASDK::TGA::LoginAsync(classId, studentId);
    }
}

From your login menu you need to pass the class id and student id to the auth process. To do this simply call

static void TGASDK::TGA::LoginAsync(const std::string& classId, const std::string& studentId);

Calling this function will start the login process in a new thread. Use TGASDK::TGA::AddLoginStatusChangeListener to add listeners (that implement TGASDK::LoginStatusChangeListener inteface) to get notified when the login process has finished. The callback gives you one boolean parameter that is true if a student logged successfully and false if the login failed or if the student logged out. Remember to call TGASDK::TGA::RemoveLoginStatusChangeListener before your listener is deleted. Note that the listener can be (and usually is) called in another thread.

Sending Events

The events that have been defined in TGA website are generated to the SDK and can be used to send data from the game to TGA. All the events have their own inner class inside TGA<yourgamename>.Event with a member variable for each event parameter and functions to start and send the event.

Sending events with duration

// Start event
TGASDKMyGame::Event::MyEvent::Start();
...
// While event is going on update variables
TGASDKMyGame::Event::MyEvent::Current().countOfSomething += 5;
...
// Send event
TGASDKMyGame::Event::MyEvent::Send();

This is useful to start an event and send it to us when it’s ready. Our SDK automatically counts time from beginning to end and appends duration to sent data. You can also modify any additional data inside the event before you send it. To start the event, call TGASDK::Event::<EventName>::Start() Now you can gather all needed data for the event. You can change additional data inside the event before you send it. Any data for the started event can be changed using TGASDK::Event::<EventName>::Current().<datavariable> To send the event, call TGASDK::Event::<EventName>::Send()

Sending events without duration

// Send an event immediately without tracking duration
TGASDKMyGame::Event::MyInstantaneousEvent::Send(5); // Event takes an integer parameter

You can call GASDK::Event::<EventName>::Send(...) with event data as parameters to send an event immediately, without tracking for duration.

Updating state

See 2.4. UPDATING STATE.

Updating state can be done using one of three function calls

• TGASDK::TGA::UpdateUserState(const std::string& state)
  • This sets the state showing below student name in teacher dashboard. It also resets detailed state showing below this state, if there was any.
• TGASDK::TGA::UpdateUserState(const std::string& state, const std::string& detailedState)
  • This sets the state showing below student name in teacher dashboard and detailed state below it.
• TGASDK::TGA::UpdateUserStateDetailedOnly(const std::string& stateDetailed)
  • This sets the detailed state below main state and does not reset the main state. You can use this to for ex. Update round numbers or other live data happening in current state of your game.

You can keep the state update calls in your game and don’t need to check if user is logged in to TGA, we will automatically check inside the function calls if player is currently authenticated to TGA and send the state update only if so.

State examples

TGASDK::TGA::UpdateUserState("In Main Menu");

TGASDK::TGA::UpdateUserState("In Settings Menu");

TGASDK::TGA::UpdateUserState("Playing Singleplayer Game", "Tutorial Level 4");

// When game begun
TGASDK:::TGA:::UpdateUserState("Playing Multiplayer Game");
// When round changed
TGASDK::TGA::UpdateUserStateDetailedOnly("Round 2");

Default state for logged-in student	Student is in main menu	Student is in settings menu	Student is playing singleplayer game, Tutorial Level 4 has been passed for detailed state	Student is playing multiplayer game, Round number is being passed to detailed state when round changes

Getting information

General information

// General information

// Call example: TGASDK.TGA.IsUserLoggedIn()

// Login information

// Returns true if logged into TGA, otherwise false.
bool IsUserLoggedIn()

// Returns true if logged into TGA via broadcast (TGA App), otherwise false.
bool LoggedInExternally()

// Returns the student ID used for login.
string GetStudentId()

// Returns the class ID used for login.
string GetClassId()

Here (on the right) are some functions you can use to get status information about TGA. All of these are static functions of TGASDK::TGA.

Subscription information

// Subscription information

// Returns true if game subscription has expired, otherwise false.
bool SubscriptionExpired()

// Returns the message that should be shown to user if the subscription has expired
string SubscriptionExpiredMessage()

These functions can be used to query if there is a valid subscription for the game. For testing the subscription, there are these two classes: Class h1xme never has subscription expired. Class h1xjr always has subscription expired. Both of these classes have student self-signup enabled so user can login with any studentid for testing.

Android Java SDK

This document describes the specifics of integrating TeacherGaming Desk to your game using the TGA Android Java SDK. For general integration information and links to other SDK documents see the general SDK instructions.

First Steps

TeacherGaming will send you a TGASDK<gamename>.java file. Copy the TGASDK<gamename>.java file to your project’s src/com/teachergaming/tga folder. Updating the SDK can be done by simply replacing the old SDK file with new one.

Notes

Your SDK file is called TGASDK<gamename>.java. Class inside that file is called TGASDK<gamename>. To improve readability, we have not added <gamename> for each method call in this document, we are mentioning TGASDK and you should add your game name after each TGASDK call to make it correct.

Student Login

Automatically Logging in with TeacherGaming App

For the automatic login to work correctly you need to pass the intent received in your main activity’s onCreate function to the SDK by calling

TGASDKSwitchGlitch.TGA.HandleIntent(getIntent());

@Override
protected void onNewIntent(Intent intent) {
    super.onNewIntent(intent);
    setIntent(intent);
    TGASDKSwitchGlitch.TGA.HandleIntent(intent);
}

You also need to override the onNewIntent function with the code on the right.

The Java Android SDK automatically handles broadcast logins via TG App. You can get notified about students logging in and logging out by implementing the TGASDK.TGA.AuthUserListener interface and adding your listener using TGASDK.TGA.AddAuthUserListener(AuthUserListener added) Remember to also remove the listener using TGASDK.TGA.RemoveAuthUserListener(AuthUserListener removed)

Manual Login

See 2.1.2. Creating your own UI for in-game login for information about manual login and guidelines for creating a login UI.

Validating Login

TGASDK.TGA.AuthUser(classID, studentID, listener);

Login can be authenticated with the code below and on the right.

TGASDK.TGA.AuthUser(classID, studentID, listener);

// Login listener interface
public interface AuthUserListener
{
    void OnTGAAuthUserComplete(boolean authenticated);
}

// Override example
TGASDKTeacherGamingApp.TGA.AuthUser("test", "student1", new AuthUserListener() {
@Override
    public void OnTGAAuthUserComplete(boolean authenticated) {
        // Handle login here
        System.out.println("LOGIN RESPONSE: " + authenticated);
    }
});

Where classID and studentID are the class and student ID’s you want to login with, and listener implements the AuthUserListener interface to listen when the login has completed.

Sending Events

The events that have been defined in TGA website are generated to the SDK and can be used to send data from the game to TGA.

Sending Events with Duration

// Start event
TGASDKMyGame.Event.MyEvent.Start();
...
// While event is going on update variables
TGASDKMyGame.Event.MyEvent.Current().countOfSomething += 5;
...
// Send event
TGASDKMyGame.Event.MyEvent.Send();

This is useful for events that have a duration. You can start an event and then send it to TeacherGaming Desk when it ends. Our SDK automatically counts time from beginning to end and appends duration to sent data. You can also modify any additional data inside the event before you send it. To start the event, call TGASDK.Event.<EventName>.Start() After that you can gather all needed data for the event. You can change additional data inside the event before you send it. All data for the started event can be changed using TGASDK.Event.<EventName>.Current.<EventParameter> variables. To send the event, call TGASDK.Event.<EventName>.Send()

Sending Events without Duration

// Send an event immediately without tracking duration
TGASDKMyGame.Event.MyInstantaneousEvent.Send(5); // Event takes an integer parameter

If event is something for which it does not make sense to track duration you can call TGASDK.Event.<EventName>.Send(...) with the event data as parameters to send the event directly.

Updating state

See 2.4. UPDATING STATE.

Updating state can be done using one of three function calls.

• TGASDK.TGA.UpdateUserState(string state)
  • This sets the state showing below student name in teacher dashboard. It also resets detailed state showing below this state, if there was any.
• TGASDK.TGA.UpdateUserState(string state, string detailedState)
  • This sets the state showing below student name in teacher dashboard and detailed state below it.
• TGASDK.TGA.UpdateUserStateDetailedOnly(string stateDetailed)
  • This sets the detailed state below main state and does not reset the main state. You can use this to for ex. Update round numbers or other live data happening in current state of your game.

You can keep the state update calls in your game and don’t need to check if user is logged in to TGA, we will automatically check inside the function calls if player is currently authenticated to TGA and send the state update only if so.

State examples

TGASDK.TGA.UpdateUserState("In Main Menu");

TGASDK.TGA.UpdateUserState("In Settings Menu");

TGASDK.TGA.UpdateUserState("Playing Singleplayer Game", "Tutorial Level 4");

// When game begun
TGASDK.TGA.UpdateUserState("Playing Multiplayer Game");
// When round changed
TGASDK.TGA.UpdateUserStateDetailedOnly("Round 2");

Default state for logged-in student	Student is in main menu	Student is in settings menu	Student is playing singleplayer game, Tutorial Level 4 has been passed for detailed state	Student is playing multiplayer game, Round number is being passed to detailed state when round changes

Handling foreground - background transitions on android

On android you should call: TGASDK.TGA.HandleApplicationToBackground() when your application goes to background (for example in your Activity’s onStop()) and TGASDK.TGA.HandleApplicationToForeground() when your application returns to foreground. These stop and restart the thread sending keepalive status messages. If HandleApplicationToBackground is not called the thread will keep running and analytics will show the app as active even if it is on the background (for example when user has pressed home key).

Getting Data

// Login information
// Get logged in user class ID
TGASDK.TGA.getClassId()
// Get logged in user student ID
TGASDK.TGA.getStudentId()
// Logs user out of TGA.
TGASDK.TGA.Logout()
// Sets classid & studentid but skips authentication. Use with care.
TGASDK.TGA.SetTGAIds(studentId, classId)

// Creatubbles
// Returns true if teacher account is linked to creatubbles.
TGASDK.TGA.isCreatubblesLinked()
// Gets student creatubbles token, if available.
TGASDK.TGA.getCreatubblesToken()
// Gets creatubbles gallery ID where creation needs to be submitted.
TGASDK.TGA.getCreatubblesGalleryId()

There is some useful data you can get inside the TGASDK<gamename> class, like current logged in user class ID, studentID, if user is logged in or creatubbles tokens (if teacher account is linked to Creatubbles). On the right you can find the most useful ones (but you can also open the TGASDK<gamename>.java file and check the class TGA to find all variables and methods available).

Node.js SDK

Analytics sdk integration instructions for node.js based web applications.

First Steps

// Require example
var TG = require(“./TGASDK<gamename>.js”);

1. TeacherGaming will send you a TGASDK<gamename>.zip archive.
2. Copy the following files to their respective folders:
   • tgnodejs-client.min.js
   • tgnodejs.min.css
   • TGASDK.js
3. Link/require each file wherever you are going to use them
4. Install the cookies node module with following command:
   • npm install cookies
   • You also need to require the cookies node module in the same file where your /tgapi route will exist

Student Login/Logout

As TeacherGaming Desk analytics (TGA) requires the game to send a Class ID and a Student ID for each user playing the game to assign data for right user, users need to login before data can be sent.

Logging in can be done through the TeacherGaming App (TG App) or in game. If users authenticate in game you will need to add a button which will open a login dialog.

Automatically Logging in with TG App

Example:

https://<origin>?classid=example&studentid=example

Client side of the SDK handles the automatic login completely so you don’t need to do anything else except ensure that client side code has been required on client side. TG App will send Class ID and Student ID as url parameters.

Manual Login/Logout

Manual login is secondary option for students that didn’t login through TG App. Client side code has a login dialog. You need to create a button that calls the following function when clicked:

TG.createDialog();

This will show up the dialog to user. It will show either login fields if user is not logged in or info page with logout button if user is logged in.

Validating login/logout

Server side of the SDK will validate login/logout and send it to TGA. You will however need to pass the login/logout parameters to the server side of the SDK through a route. You will also need to pass the response from the login/logout back to the client side inside the callback.

Route Example

Example is done in Meteor-framework.

Router.route('tgapi', function(req, res) {
    var cookies = new Cookies(req, res);

    TG[*action parameter*](*query parameters obj*, cookies, function(response) {
        // WRITEHEAD
        // SEND RESPONSE
    });
});

Cookies

var cookies = new Cookies(req, res);

This SDK uses cookies node module to store credentials. These cookies will expire in 48hrs. To enable the cookies you need to create new cookies instance inside the tgapi/ and pass it to the functions. You need to pass the routes request and response to the cookies instance.

Client side

Client side will pass the Class ID and Student ID as url parameters to tgapi/ route which you will need to catch.

Client will send parameters from dialog to following url: <origin>/tgapi?action=login&classid=<classid>&studentid=<studentid>

Sending Events (client only)

The events that have been defined in TGA website are generated to the SDK and can be used to send data from the game to TGA.

Sending Events with Duration

// Examples:

// Start:
TG.exampleEvent.start();

// Send:
TG.exampleEvent.send(param1, param2);

This is useful to start an event and send it to TeacherGaming Desk when it’s ready. Our SDK automatically counts time from beginning to end and appends duration to sent data. When sending the event you need to pass the needed parameters to the function, otherwise it will throw an error and no event will be sent. To start the event, call TG.<EventName>.start() Now you can gather all needed data for the event. To send the event, call TG.<EventName>.send(*data parameters*)

Sending Events without Duration

If event is something which you cannot track duration of just call TG.<EventName>.send() with the parameters.

Updating State (client only)

See 2.4. UPDATING STATE.

Updating state can be done using the following function: TG.updateState(“state”, detailed);

The detailed-parameter is a boolean.

If it is set to false, function sets the state showing below student name in teacher dashboard. It also resets detailed state showing below this state, if there was any.

If set to true, function sets the detailed state that shows below basic state

You can keep the state update calls in your game and don’t need to check if user is logged in to TGA, we will automatically check inside the function calls if player is currently authenticated to TGA and send the state update only if so.

State examples

TG.updateState("In Main Menu", false);

TG.updateState("In Settings Menu", false);

TG.updateState("Playing Singleplayer Game", false);
TG.updateState("Tutorial Level 4", true);

// When game begun
TG.updateState("Playing Multiplayer Game", false);
// When round changed
TG.updateState("Round 2", true);

Default state for logged-in student	Student is in main menu	Student is in settings menu	Student is playing singleplayer game, Tutorial Level 4 has been passed for detailed state	Student is playing multiplayer game, Round number is being passed to detailed state when round changes

Manual Integration and HTTP API

This document describes how to manually integrate your game with TeacherGaming Desk without using a ready-made SDK.

The document is divided into use cases. First we describe and give examples on how to handle automatic login e.g. login parameters coming in from the TeacherGaming App. After that we describe the HTTP API you can use to communicate with TeacherGaming Desk. When integrating with TeacherGaming Desk basically you just send data to our REST API through standard HTTPS calls. All data passed needs to be inside the GET query string. Note that for compatibility with special characters, you are always required to URL encode all data sent to our API.

In-game Flow

1. User login
   • Successful login needs to be done before any data can be sent to TeacherGaming Desk
2. Start calling playing game once every 60 seconds
   • After login is successful. This will inform the TeacherGaming Desk system that the user is currently playing the game and the user can be tracked. Also the TeacherGaming Desk Teacher Dashboard shows that the user is currently playing the game.
3. Update player state as it changes in game
   • This information will be shown on the Teacher Dashboard on the TeacherGaming Desk website so that the Teacher can easily see what the students are currently doing in game.
4. Send event data
   • Events and the data in them have been set up on the TeacherGaming Desk website by TeacherGaming. This is the data that is needed to track student progress.

Student Login

Manual Authentication / Login

Login a student to the system using their class id and student id, and an API key to identify which game they are logging in with.

HTTP Request

URL

https://analyticsdata.teachergaming.com/api/validate

Example Usage

https://analyticsdata.teachergaming.com/api/validate?studentid=johndoe&classid=democlass&apikey=K8SaQRDsSFdFt5zFthTy

Parameters

Parameter	Default	Description
classid		TeacherGaming Desk Class ID
studentid		TeacherGaming Desk studentid
apikey		The game’s TeacherGaming Desk API key

response

{
  "success": 1,
  "message": "Student with this ID exists in this class.",
  "responseCreatedAt": "2017-06-13T07:08:47.763Z",
  "debug": {
    "container": "undefined"
  },
  "login_message": "Logged into class <classid> with studentid <studentid>",
  "login_message_html": "Logged into class <b>classid</b> with studentid <b>studentid</b>",
  "student": {
      "studentid": "<studentid>",
      "studentid_unique": "<HashedUniqueStudentID>",
      "created_account": false,
      "teacher_creatubbles_linked": true
  }
  "class": {
      "classid": "<classid>",
      "classid_unique": "<HashedUniqueClassID>",
      "owner_teacher_unique": "<HashedUniqueTeacherID>",
      "allow_student_signup": true
  },
  "subscription": {
    "subscription_exists": true,
    "subscription_expired": false,
    "subscription_expired_message": "Your subscription has expired."
  },
  "game_name": "<game’s name>",
  "gameSave": {
    "format":"Base64SGDict",
    "saveData":"AAEAAAD/////AQAAAAAAAAAEAQAAANQBU3lzdGVtLkNvbGxlY3Rpb25zLkdlbmVyaWMuRGljdGlvbmFyeWAyW1tTeXN0ZW0uU3 <and so on> "
  }
}

Key	Value
success	1 for successful login, 0 for failed login
message	Detailed information about the login result. DEPRECATED, don’t use in new integrations.
responseCreatedAt	Datetime when reponse was created
debug	Debug information
login_message	login message that can be displayed to user on successful login. DEPRECATED, don’t use in new integrations.
login_message_html	same as above but with html bold tags in id’s. DEPRECATED, don’t use in new integrations.
student	student information, see table below
class	class information, see table below
subscription	subscription information, see table below
game_name	name of the game that was logged in to
gameSave	cloud save data of the logged in student, see 7.7. CLOUD SAVE UPLOAD

student

Key	Value
studentid	student id
studentid_unique	hashed unique id for the student
created_account	true if student was created on login, otherwise false. DEPRECATED, don’t use in new integrations.
teacher_creatubbles_linked	true if teacher has linked their account to creatubbles, otherwise false

class

Key	Value
classid	class id
classid_unique	hashed unique id for the class
owner_teacher_unique	hashed unique id for the teacher of the class
allow_student_signup	true if student self-signup is allowed, otherwise false. DEPRECATED, don’t use in new integrations.

subscription

Key	Value
subscription_exists	true if the teacher of the class has a TeacherGaming Desk subscription, otherwise false
subscription_expired	true if the TeacherGaming Desk subscription has expired, otherwise false
subscription_expired_message	Message that can be displayed to user if subscription has expired. English only. DEPRECATED, don’t use in new integrations.

Authentication / Login through TeacherGaming App

To support automatic login you need to handle the login parameters being given to your game by the TeacherGaming App. On Android this is done by using Intent (when app is not already running) and Broadcast (when app is running) parameters. On iOS this is done using a URL scheme. We are planning to change both mobile platforms to use the URL scheme in the future. On desktop latforms the login parameters are passed as command line paramters when starting the game.

Intent Login

// Example code for handling the login intent from TeacherGaming App in an Android game.
// Example is in Unity and C# but you can adapt it for your language & engine.

// Intent login at App Start (Unity C# code)
// This function is run from a Start() in Monobehaviour.

private bool TryLoginFromAndroidIntent()
{
    // Get the class, activity (context) and intent from unity android side
#if UNITY_ANDROID && !UNITY_EDITOR
    AndroidJavaClass javaClass = new AndroidJavaClass("com.unity3d.player.UnityPlayer");
    AndroidJavaObject context = javaClass.GetStatic<AndroidJavaObject>("currentActivity");
    AndroidJavaObject intent = context.Call<AndroidJavaObject>("getIntent");

    // Check if intent has TeacherGaming Desk login related extras
    bool hasClassId = intent.Call<bool>("hasExtra", "TGA-classid");
    bool hasStudentId = intent.Call<bool>("hasExtra", "TGA-studentid");
    bool hasCommand = intent.Call<bool>("hasExtra", "TGA-command");
    string command = "";
    string classId = "";
    string studentId = "";
    if (hasCommand)
    {
        command = intent.Call<string>("getStringExtra", "TGA-command");
    }

    if (hasClassId && hasStudentId && (!hasCommand || command == "login"))
    {
        classId = intent.Call<string>("getStringExtra", "TGA-classid");
        studentId = intent.Call<string>("getStringExtra", "TGA-studentid");

        if (classId != "" && studentId != "" && classId != null && studentId != null &&
          classId != "null" && studentId != "null")
        {
            // Got class id & student id & commanded to login. Start login process.
            // CALL LOGIN CODE HERE
            return true;
        }
        else
        {
            return false;
        }
    }
    else
    {
        return false;
    }
#else
    return false;
#endif
}

Intent is an abstract description of an operation to be performed used in Android applications. Intent can also contain key value pair extras, which can be used to send data internally in app or externally to another app. For the case where the game is not running yet, the TeacherGaming App simply starts the app using an intent that contains the class id and student id as extras.

Keys and values used in TeacherGaming App intents

Key	Value
TGA-classid	User’s Class ID. Not needed if not logging in.
TGA-studentid	User’s Student ID. Not needed if not logging in.
TGA-command	“login” or “logout” Do we login or logout.

When using a TGA SDK all of this is handled automatically. However when there is no TGA SDK available for the engine you are using (and you are using the HTTP API directly) or you for some other reason need to implement this yourself you can refer to the examples on the right for help.

If you are unfamiliar with Android development and wish to know more about intents, please refer to the Android documentation: https://developer.android.com/reference/android/content/Intent.html

// Receiving broadcasts
// Unity C# code
void OnApplicationPause(bool paused)
{
    AndroidJavaClass tgaReceiver = new AndroidJavaClass("com.teachergaming.tgareceiver.TGABroadcastReceiver");
    tgaReceiver.CallStatic("createInstance");

    // Get static variables from plugin
    string receivedClassID = tgaReceiver.GetStatic<string>("classId");
    string receivedStudentID = tgaReceiver.GetStatic<string>("studentId");

    if (receivedClassID != null && receivedStudentID != null)
    {
        // login code here ...
    }
}

// Android Java code for BroadcastReceiver
public class TGABroadcastReceiver extends BroadcastReceiver {
   public static String classId;
   public static String studentId;

   public TGABroadcastReceiver() {
   }

   @Override
   public void onReceive(Context context, Intent intent)
   {
       String receivedClassId = intent.getStringExtra("TGA-classid");
       String receivedStudentId = intent.getStringExtra("TGA-studentid");

       if (receivedClassId != null && receivedStudentId != null
               && receivedClassId.length() > 0 && receivedStudentId.length() > 0)
       {
           classId = receivedClassId;
           studentId = receivedStudentId;
       }
       else
       {
           classId = null;
           studentId = null;
       }
   }
}

<!--AndroidManifest for the receiver-->
<!--You need to add this part to your AndroidManifest.xml file to support the broadcast receiver:-->
<receiver
    android:name=".TGABroadcastReceiver"
    android:enabled="true"
    android:exported="true">
    <intent-filter>
        <action android:name="com.teachergaming.com.TGAbroadcast" />
    </intent-filter>
</receiver>

Broadcast login (while game is running)

When the game is running intents can be received via broadcast. Receiving broadcasts requires a BroadcastReceiver. Implementation may differ depending on the engine you are using for your game.

TGA Unity SDK uses an Android plugin for receiving broadcasts.

Testing with TeacherGaming App

1. Install the app from google play: https://play.google.com/store/apps/details?id=com.teachergaming.com&hl=en (or search: TeacherGaming)
2. Open the TeacherGaming Application on your device
3. Press “Login to Analytics” button at the top of the screen
4. Tap the laptop image 10 times at the top of the screen A new menu will open where you can input the following information:
   • Your game package name, for example: com.FiveMoreMinutes.SwitchAndGlitch
   • Class ID
   • Student ID
   • Press “Launch” and the TeacherGaming App will run your game and send given id’s to it.

Example URI scheme for testing login:
com.teachergaming.switchandglitch://?classid=5mm&userid=marko&command=login

On iOS the app is launched using the URI scheme <your app bundle identifier>://?classid=<class id>&studentid=<student id>&command=<login/logout>

For how to handle URL schemes on iOS see the relevant documentation for your programming language/engine/platform.

Check class

Can be used to check if a class with a given class id exists in the system.

HTTP Request

URL

https://analyticsdata.teachergaming.com/api/check_class

Example Usage

https://analyticsdata.teachergaming.com/api/check_class?classid=democlass&apikey=K8SaQRDsSFdFt5zFthTy

Parameters

Key	Value
apikey	Api key of your game
classid	TeacherGaming Desk class id

Response

{
    "success": 1,
    "message": "Class check successfull, class found with this id.",
    "responseCreatedAt": "2017-06-13T07:10:16.249Z",
    "debug": {
        "sent": "2017-03-15T12:05:35.722Z",
        "container": "zo5jajsD99beDQyt7-pv0n"
    },
    "class": {
        "classid": "<classid>",
        "class_exists" : true,
        "classid_unique": "<HashedUniqueClassID>"
    },
}

Key	Value
success	1 for success, 0 for fail.
message	Detailed information about the result
debug	Debug information
responseCreatedAt	Datetime when reponse was created
class	Described in the following table

Key	Value
classid	The class id (same as the one given as parameter)
class_exists	True if class exists, false if not
classid_unique	Unique id of the class

Playing Game (keep alive)

Inform TeacherGaming Desk that the user is currently logged in and playing. Send once every minute. If TeacherGaming Desk does not receive this request for 3 minutes it will deduce that the student has quit the game and log him out. In the response to this request we also get the lessonActionId of the ongoing lesson (if any) that can be used to launch the lesson specific activity (f.e. level) in the game.

HTTP Request

URL

https://analyticsdata.teachergaming.com/api/playing_game

Example Usage

https://analyticsdata.teachergaming.com/api/playing_game?studentid=johndoe&classid=democlass&apikey=K8SaQRDsSFdFt5zFthTy

Parameters

Key	Value
classid	TeacherGaming Desk class id
studentid	TeacherGaming Desk id of the student in the class
apikey	Api key of your game

Response

{
    "success": 1,
    "message": "Student playtime added",
    "responseCreatedAt": "2017-06-13T07:10:16.249Z",
    "debug": {
        "sent": "2017-03-15T12:05:35.722Z",
        "container": "zo5jajsD99beDQyt7-pv0n"
    },
    "game_name": "<game’s name>",
    "class": {
        "classid": "<classid>",
        "classid_unique": "<HashedUniqueClassID>"
    },
    "student": {
        "studentid": "<studentid>",
        "studentid_unique": "<HashedUniqueStudentID>"
    },
    "lessonActionId": "Level 5"
}

Key	Value
success	1 for success, 0 for fail.
message	Detailed information about the result
debug	Debug information
responseCreatedAt	Datetime when reponse was created
game_name	Name of the game the student is logged in
student	studentid of the logged in student and SHA256 hash of this id
class	classid of the logged in student and SHA256 hash of this id
lessonActionId	game specific lesson action id of the currently ongoing lesson, not present if no ongoing lesson, empty if lesson has no action id. Used to for example launch the game directly to the relevant level for the ongoing lesson.

Player State

Inform TeacherGaming Desk what the user is currently doing in game. Separate calls for State and Detailed State. For example: State = Playing Game, Detailed State = Level 1

HTTP Request

URL

https://analyticsdata.teachergaming.com/api/update_state

https://analyticsdata.teachergaming.com/api/update_state_detailed

Example Usage

https://analyticsdata.teachergaming.com/api/update_state?studentid=johndoe&classid=democlass&apikey=K8SaQRDsSFdFt5zFthTy&state=Playing game

https://analyticsdata.teachergaming.com/api/update_state_detailed?studentid=johndoe&classid=democlass&apikey=K8SaQRDsSFdFt5zFthTy&state=Level 1

Parameters

Key	Value
classid	TeacherGaming Desk class id
studentid	TeacherGaming Desk id of the student in the class
apikey	Api key of your game
state	What the user is currently doing

Response

{
    "success": 1,
    // IF CALLING STATE:
    "message": "Student state updated to: <newstate>",
    // IF CALLING DETAILED STATE:
    "message": "Student detailed state updated to: <newdetailedstate>",
    "responseCreatedAt": "2017-06-13T07:12:46.311Z",
    "debug": {
        "sent": "2017-03-15T12:05:35.722Z",
        "container": "zo5jajsD99beDQyt7-pv0n"
    },
    "game_name": "<game’s name>",
    // IF CALLING STATE:
    "new_state": "<newstate>",
    // IF CALLING DETAILED STATE:
    "new_detailed_state": "<newstatedetailed>",
    "class": {
        "classid": "<classid>",
        "classid_unique": "<HashedUniqueClassID>"
    },
    "student": {
        "studentid": "<studentid>",
        "studentid_unique": "<HashedUniqueStudentID>"
    }
}

Key	Value
success	1 for success, 0 for fail.
message	Detailed information about the result + state sent to method
debug	Debug information
responseCreatedAt	Datetime when reponse was created
game_name	name of the game student logged in
new_state
new_detailed_state	State that was sent to method in a more detailed form
student	studentid of the logged in student and SHA256 hash of this id
class	classid of the logged in student and SHA256 hash of this id

Event Data

Send event data to TeacherGaming Desk. The events and needed data for your game can be seen on the Events page on the TeacherGaming Desk website.

HTTP Request

URL

https://analyticsdata.teachergaming.com/api/track

Example Usage

This is the LevelComplete event in Switch & Glitch https://analyticsdata.teachergaming.com/api/track?apikey=K8SaQRDsSFdFt5zFthTy&studentid=johndoe&classid=democlass&eventname=LevelComplete&GameType=Network&LevelId=Level1&TileCount=20&FailedTileCount=-1&SuccessTileCount=3&CommitCount=1&Score=101&Duration=17389

Parameters

Required

Key	Value
apikey	Api key of your game
eventname	The event name that you are submitting data for.

Optional

Key	Value
classid	TeacherGaming Desk class id
studentid	TeacherGaming Desk id of the student in the class
Duration	How long it took to complete the event in milliseconds.
Optional data	Optional event data for your event is passed in key=value pairs. This is the data that has been set by TeacherGaming for each Event that is tracked in your game Examples: levelID=JungleLevel3 Score=3

Response

{
    "success": 1,
    "message": "Event tracked succesfully.",
    "responseCreatedAt": "2017-06-13T07:21:44.594Z",
    "debug": {
        "sent": "2017-03-15T12:05:35.722Z",
        "container": "zo5jajsD99beDQyt7-pv0n"
    },
    "game_name": "<game’s name>",
    "event": "<eventname>",
    "student": {
        "studentid": "<studentid>",
        "studentid_unique": "<HashedUniqueStudentID>"
    },
    "class": {
        "classid": "<classid>",
        "classid_unique": "<HashedUniqueClassID>"
    },
    "data": {},
    "duration": 0
}

Key	Value
success	1 for success, 0 for fail.
message	Detailed information about the result
debug	Debug information
responseCreatedAt	Datetime when reponse was created
game_name	name of the game student logged in
event	name of the event that is being tracked
student	studentid of the logged in student and SHA256 hash of this id
class	classid of the logged in student and SHA256 hash of this id
data	All of the additional data fields sent to method
duration	Duration of the event, sent to method

Cloud save upload

You can save arbitrary binary information from your game to TeacherGaming Desk on a per student basis. This is intended for use in implementing a cloud save functionality so that game progress would be the same for each TeacherGaming Desk student login regardless of which device they login on.

Cloud saves are downloaded in the response to the login request, see Student Login.

HTTP REQUEST

URL

https://analyticsdata.teachergaming.com/api/upload_cloud_save

Parameters

As this is a POST request the parameters go into form data (form-data) instead of URL parameters.

Key	Value
classid	TeacherGaming Desk class id
studentid	TeacherGaming Desk id of the student in the class
apikey	Api key of your game
format	Freeform format string. Should not be empty. Can be used for example when game save format changes between versions of the game.
savedata	Game save data as a string (for example base64 encoded binary data).

Student Logout

Log out a student from TeacherGaming Desk. Logging out stops all student specific interactions with TeacehrGaming Desk. Note that for subscription based games the student should not be allowed to play the game anymore after logging out.

HTTP Request

URL

https://analyticsdata.teachergaming.com/api/logout_student

Example Usage

https://analyticsdata.teachergaming.com/api/logout_student?studentid=johndoe&classid=democlass&apikey=K8SaQRDsSFdFt5zFthTy

Parameters

Key	Value
classid	TeacherGaming Desk class id
studentid	TeacherGaming Desk id of the student in the class
apikey	Api key of your game

Response

{
  "success": 1,
  "message": "Student logged out",
  "responseCreatedAt": "2017-06-13T06:56:25.169Z",
  "debug": {
      "sent": "2017-03-15T12:05:35.722Z",
      "container": "zo5jajsD99beDQyt7-pv0n"
  },
  "game_name": "<game’s name>",
  "class": {
      "classid": "<classid>",
      "classid_unique": "<HashedUniqueClassID>"
  },
  "student": {
      "studentid": "<studentid>",
      "studentid_unique": "<HashedUniqueStudentID>"
  }
}

Key	Value
success	1 for success, 0 for fail.
message	Detailed information about the result
debug	Debug information
responseCreatedAt	Datetime when reponse was created
game_name	Name of the game student logged out of
student	studentid of the logged out student and SHA256 hash of this id
class	classid of the logged out student and SHA256 hash of this id

Creatubbles

Optional If your game has Creatubbles integration, this method can be used to get student’s creatubbles token and gallery where to submit game screenshots into.

HTTP Request

URL

https://analyticsdata.teachergaming.com/api/get_student_creatubbles_token

Example Usage

https://analyticsdata.teachergaming.com/api/get_student_creatubbles_token?studentid=johndoe&classid=democlass&apikey=K8SaQRDsSFdFt5zFthTy

Parameters

Key	Value
classid	TeacherGaming Desk class id
studentid	TeacherGaming Desk id of the student in the class
apikey	Api key of your game

Response

{
  "creatubblesAccountCreated": false,
  "creatubblesTokenFetched": true,
  "creatubbles_username": "<creatubblesUsername>",
  "creatubbles_id": "<creatubblesUserId>",
  "creatubbles_token": "<creatubblesToken>",
  "creatubbles_class_gallery_id": "<creatubblesClassGalleryId>",
  "creatubblesClassGalleryCreated": false,
  "creatubbles_gallery_id": "<creatubblesGalleryId>",
  "creatubblesGalleryCreated": false
}

Key	Value
creatubblesAccountCreated	True if new account was created for the user (did not have existing CTB account)
creatubblesTokenFetched	True if CTB token was succesfully fetched for the user
creatubbles_username	Student CTB username
creatubbles_id	Student CTB id
creatubbles_token	Student CTB token
creatubbles_class_gallery_id	Class gallery where you should submit student creations into
creatubblesClassGalleryCreated	True if gallery for the class was just created (did not exist before)
creatubbles_gallery_id	Deprecated Gallery where to submit creations into
creatubblesGalleryCreated	Deprecated If gallery was just created for class

oAuth

Desk works as oAuth 2 identity provider server. To gain access to these features, please contact us to get your client_id and client_secret generated for you.

In a nutshell:

1. Request your client_id and client_secret from TeacherGaming
2. Redirect user to login URL as mentioned in section Authorization
3. User gets redirected to your specified URL, you will get code as parameter. Call our Token endpoint to exchange that code for access token
4. Verify that access token is correct and user is correct by calling our Profile endpoint.

Authorization

We currently support authorization code flow. You will need to redirect the user to our request URL and pass the additional parameters.

Request Type

GET

Url

https://desk.teachergaming.com/api/oauth/authorize

Parameters

Parameter	Description	Required
response_type	only code allowed for now.	true
client_id	Your client_id.	true
redirect_uri	URL where client gets redirected after succesfull login. These are whitelisted by Teachergaming. Special characters need to be url encoded. See table below	true
student_login	Set to true to login as a student. No need to include this parameter if doing teacher login, or you can pass false.	false
switch_teacher_student_login	Set to true to allow switching between teacher and student logins.	false

redirect_uri encoding

Character	Endoced
&	%26
#	%23
?	%3F
=	%3D
@	%40
‘ ’ (space)	%20

Response

// Example of address where user's browser gets redirected after succesfull login
https://yourRedirectUri.com?code=<yourcode>&is_teacher=<true|false>

After succesfull login, user will be redirected back to your redirect_uri with code in GET query parameter. Use this code to fetch the access token for the user as explained in section Token.

Key	Value
code	Code that can be exchanged for access token.
is_teacher	True if logged in as a teacher, otherwise false.

Token

This endpoint can be used to exchange oauth code with access token.

Request Type

GET

Url

https://analyticsdata.teachergaming.com/api/oauth/token

Parameters

Parameter	Description	Required
grant_type	Set to authorization_code. Required by oAuth standard.	true
code	Code you got from us in the Authorization section.	true
redirect_uri	Exact same redirect_uri used in Authorization section. Do not include query parameters or any extra information to this. Special characters need to be url encoded. See table below.	true
client_id	Your client_id.	true
client_secret	Your client_secret.	true

redirect_uri encoding

Character	Endoced
&	%26
#	%23
?	%3F
=	%3D
@	%40
‘ ’ (space)	%20

Response

Example Success Output

{
  "success": 1,
  "message": "Token created succesfully.",
  "responseCreatedAt": "2017-07-26T09:47:48.733Z",
  "access_token": "<YourToken>",
  "token_type": "bearer",
  "expires_in": 0,
  "service": "<ServiceName>"
}

Example Failed Output

{
  "success": 0,
  "message": "Code not found."
}

Returns back the token that can be used to access rest of oAuth endpoints.

Key	Value
success	1 for success, 0 for failure.
access_token	User’s access token.
token_type	Type of token. Currently only bearer.
expires_in	Time when token expires. 0 means token does not expire.
service	Your service’s name.

User Profile

This endpoint returns information about the user. Requires valid token. This method is useful for verifying that the user information like email address is correct after getting token for a user.

Request Type

GET

Url

https://analyticsdata.teachergaming.com/api/oauth/profile

Parameters

Parameter	Description	Required
access_token	User’s access token	true

Response

Example Teacher Success Output

{
  "success": 1,
  "message": "Profile information fetched succesfully.",
  "responseCreatedAt": "2017-07-26T09:51:01.858Z",
  "isStudent": false,
  "teacher": {
      "first_name": "<first_name>",
      "last_name": "<last_name>",
      "email": "<email>",
      "unique_id": "<unique_id>"
  },
  "institution": {},
  "subscription": {
      "active": false,
      "expired": true
  }
}

Example Student Success Output

{
  "success": 1,
  "message": "Profile information fetched succesfully.",
  "responseCreatedAt": "2017-07-26T09:51:01.858Z",
  "isStudent": true,
  "student": {
    "name": "<studentname>",
      "studentid": "<studentid>",
      "studentid_unique": "<studentid_unique>"
  },
  "class": {
      "class_name": "<classname>",
      "classid": "<classid>",
      "classid_unique": "<classid_unique>"
  },
  "subscription": {
      "active": true,
      "expired": false
  }
}

Example Failed Output

{
  "success": 0,
  "message": "Access token not found.",
  "error": "invalid_request",
  "error_description": "Access token not found."
}

Key	Value	Role
success	1 for success, 0 for failure.	both
isStudent	true if this user is student, false otherwise.	both
subscription	Information if user currently has active subscription	both
teacher	Information about the teacher	teacher
institution	Information about the institution user is part of. Can be empty if user is not part of any institution.	teacher
student	Information about the student	student
class	Information about class the student is part of	student

Classes

This endpoint returns the classes and students assosicated with the authorized teacher. Requires valid token. This method is useful for example for creating accounts for the students in your game.

Request Type

GET

Url

https://analyticsdata.teachergaming.com/api/oauth/classes

Parameters

Parameter	Description	Required
access_token	User’s access token.	true

Response

Example Classes Success Output

{
  "success": 1,
  "message": "Teachers classes information fetched succesfully.",
  "responseCreatedAt": "2017-08-28T14:43:51.572Z",
  "debug": {
    "container": "undefined",
    "host": "Tietokone-PC"
  },
  "classes": [
    {
      "classid": "<classid>",
      "classid_unique": "<uniqueclassid>",
      "class_name": "<classname>",
      "students": [
        {
          "studentid": "<studentid>",
          "studentid_unique": "<unique_studentid>"
        }
      ]
    }
  ]
}

Example Failed Output

{
    "success": 0,
    "message": "Access token cannot be empty.",
    "error": "invalid_request",
    "error_description": "Access token cannot be empty."
}

Key	Value
success	1 for success, 0 for failure.
message	Information about the request (f.e. error message)
debug	Debug information
classes	Teacher’s classes (array of class json elements described below)

Class element

Key	Value
classid	Class id of the class. Student inputs this when logging in.
classid_unique	Unique id for the class. Can be used f.e. for databases. Does not change.
class_name	Name of the class
students	Students belonging to the class (array of class json elements described below)

Student element

Key	Value
studentid	Student id. Student inputs this and the class id when logging in.
studentid_unique	Unique id for the student. Can be used f.e. for databases. Does not change.

Revoke Token

This endpoint can be used to revoke a token.

Request Type

GET

Url

https://analyticsdata.teachergaming.com/api/oauth/revoke

Parameters

Parameter	Description	Required
access_token	User’s access token.	true

Response

Example Success Output

{
  "success": 1,
  "message": "Token revoked succesfully.",
  "responseCreatedAt": "2017-07-26T10:03:45.218Z"
}

Example Failed Output

{
  "success": 0,
  "message": "Access token not found.",
  "error": "invalid_request",
  "error_description": "Access token not found."
}

Key	Value
success	1 for success, 0 for failure.
